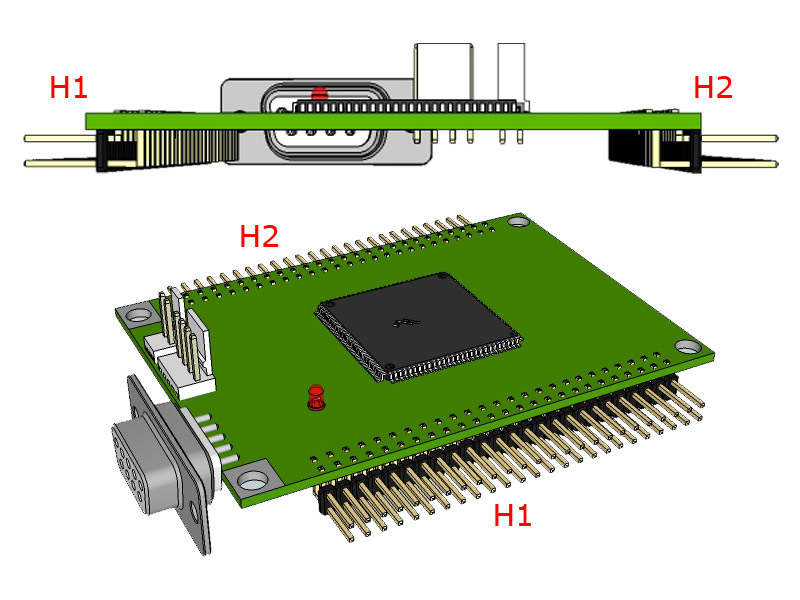

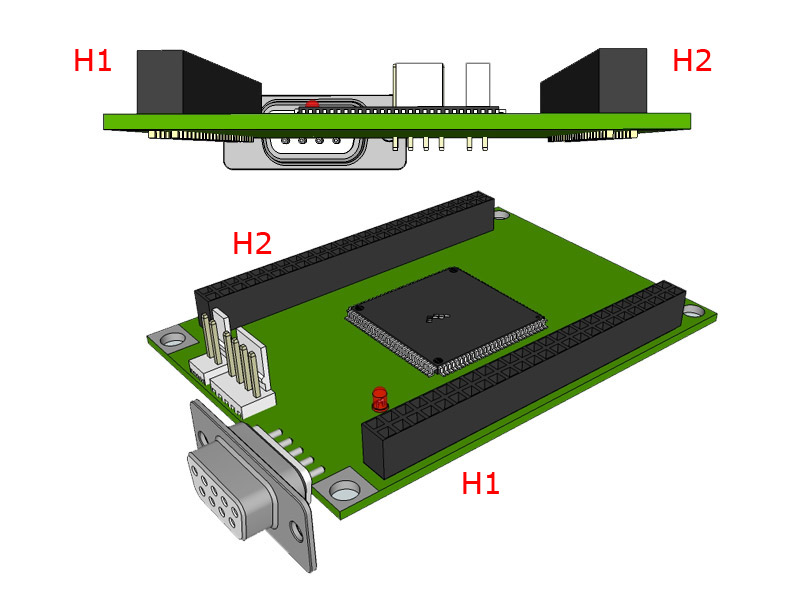

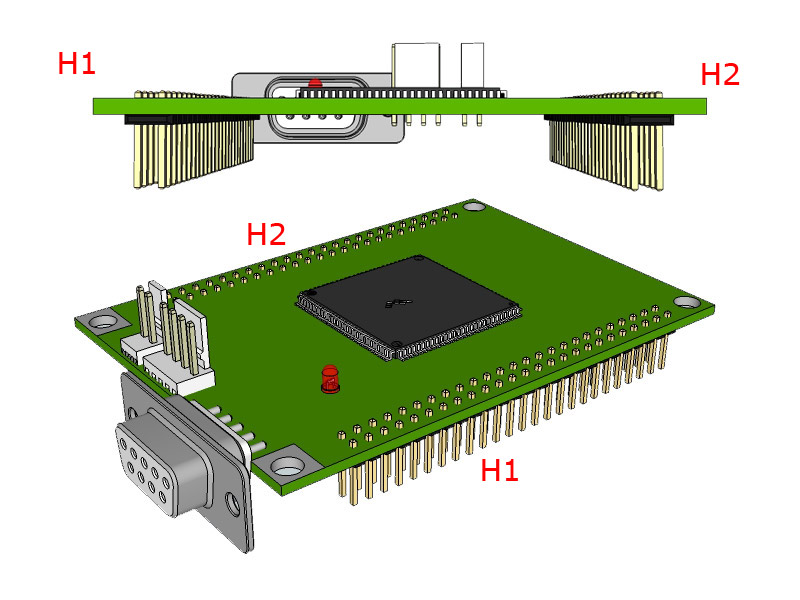

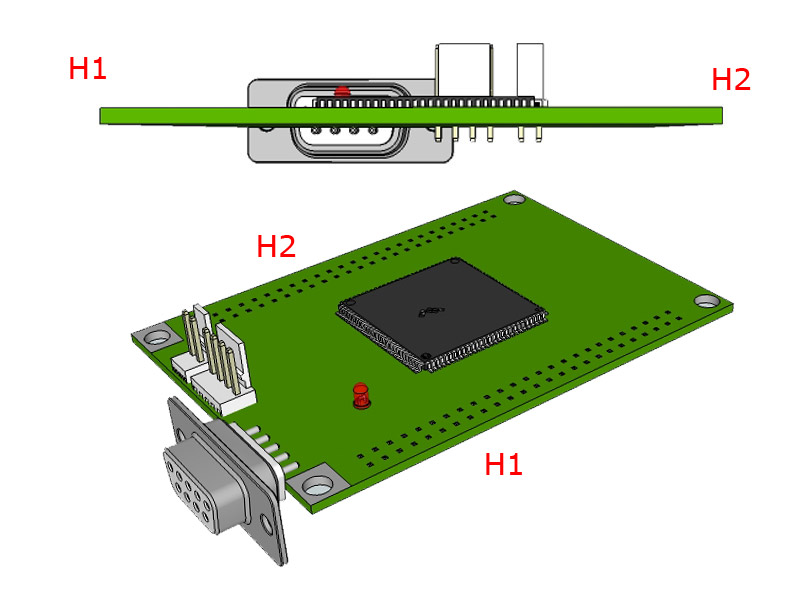

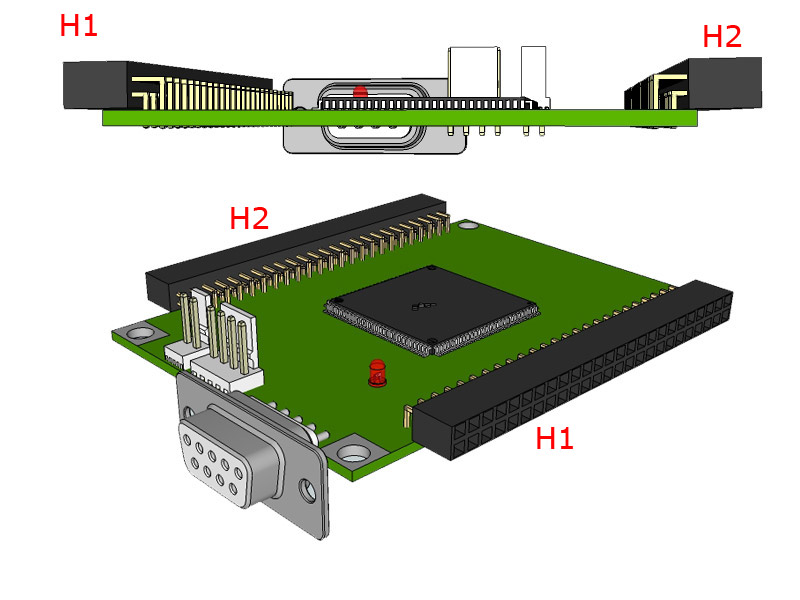

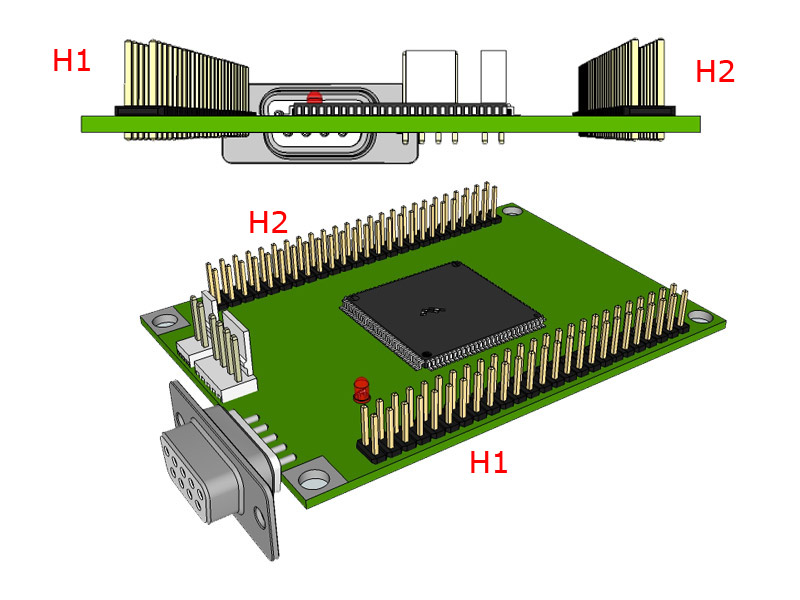

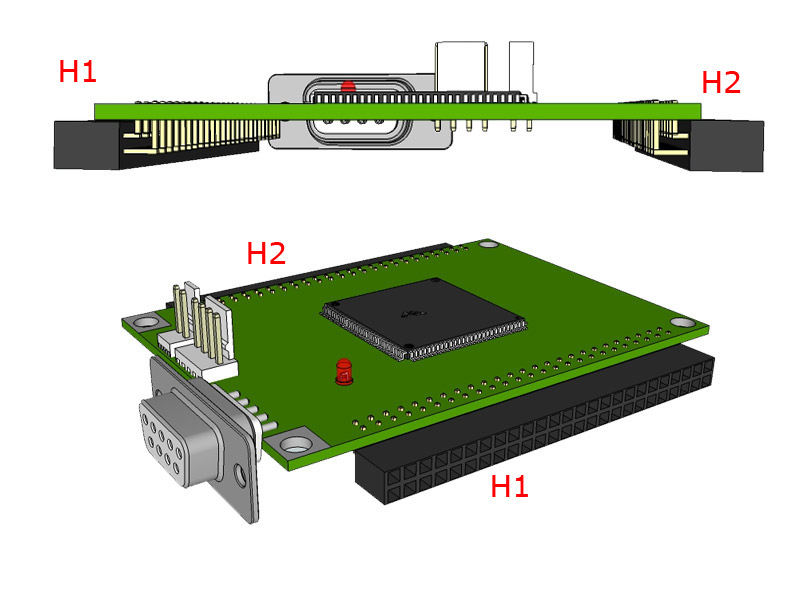

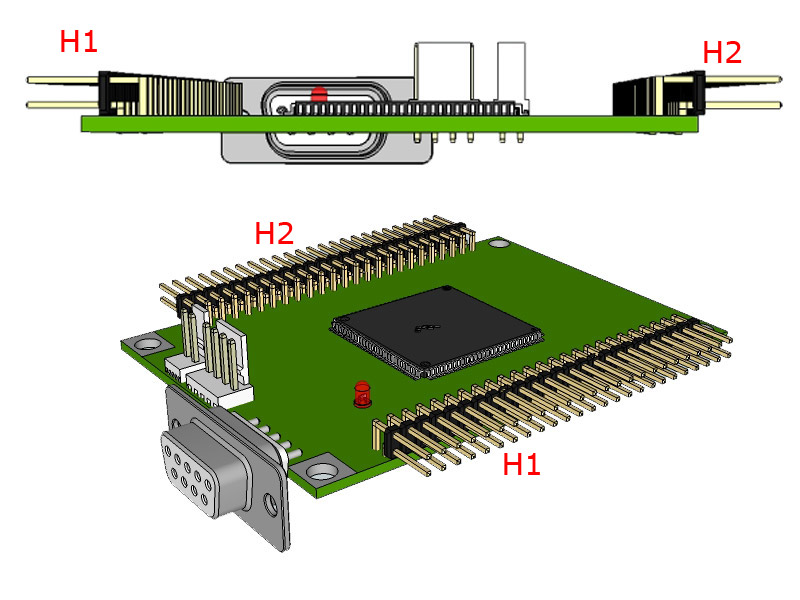

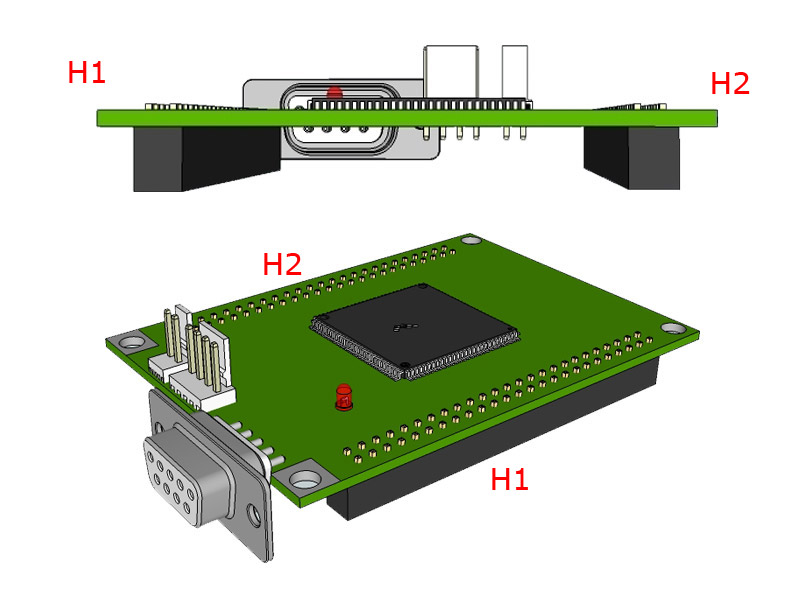

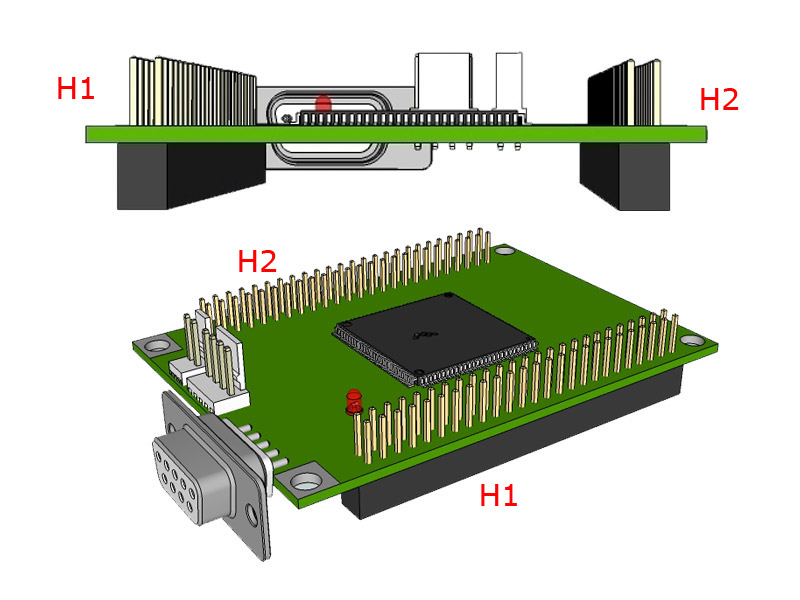

1) While each illustration below shows the same connector style on both H1 and H2, boards may in fact be ordered with any combination of connector options
(e.g. H1 = SB and H2 = M).

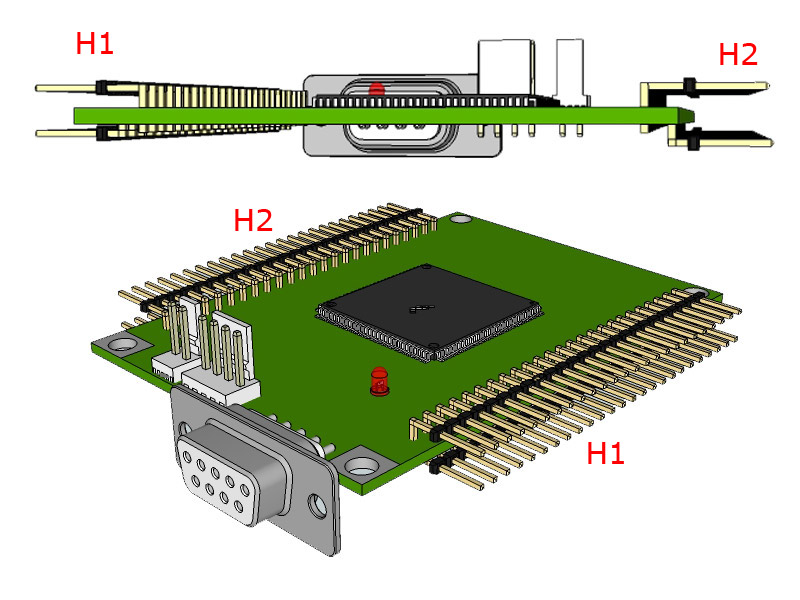

2) All connectors are standard 0.1" (2.54mm) spacing, with 0.025" (0.64mm) square pins/receptacles; Nominal 0.23" (5.85mm) pin mating length, and 0.33" (8.38mm) receptacle height; SB connector has 0.3" (7.62mm) spacing between rows.
Standard Connector Options
