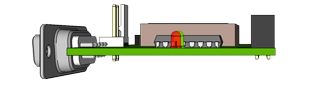

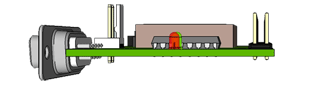

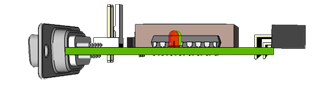

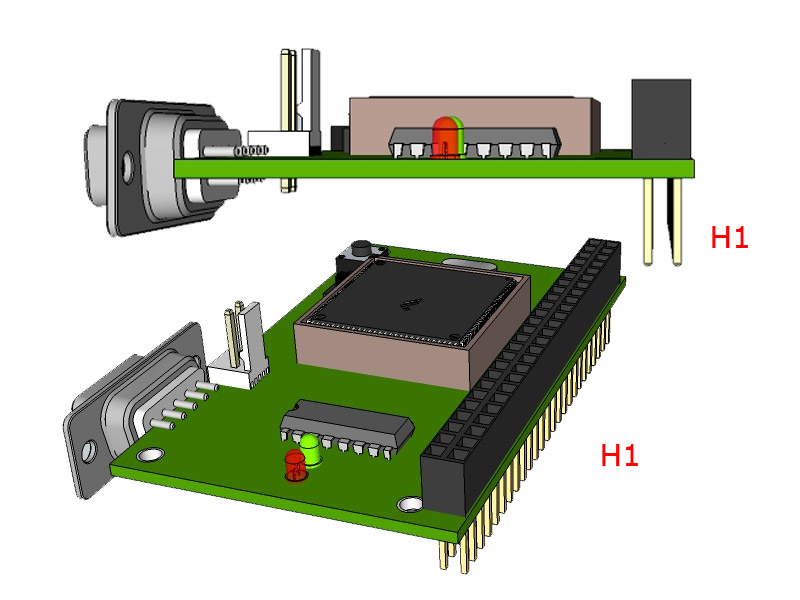

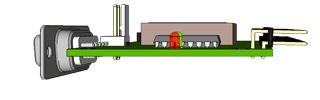

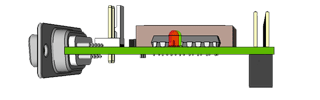

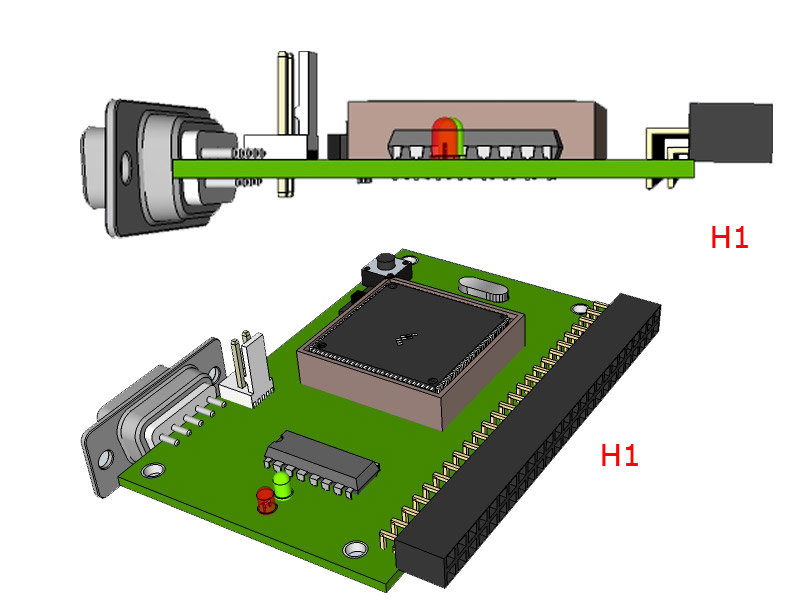

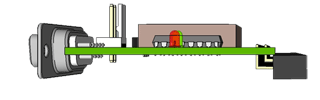

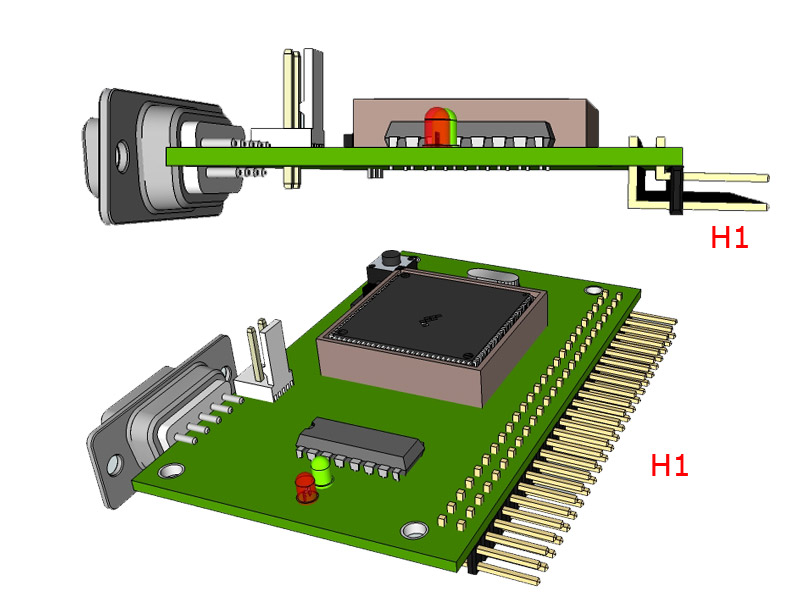

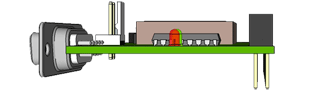

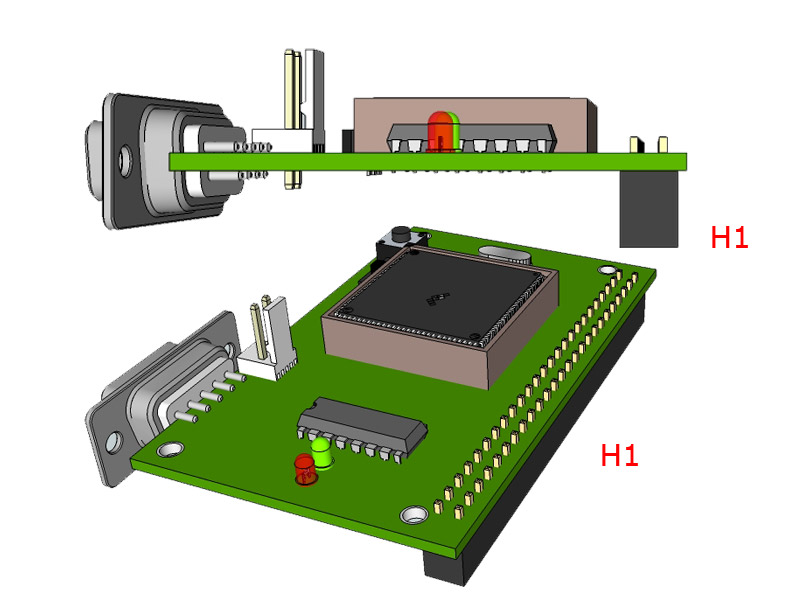

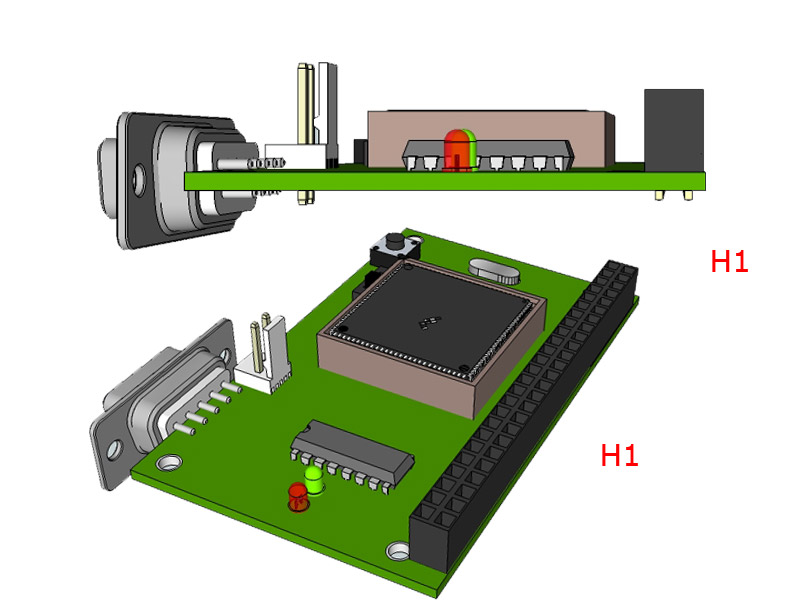

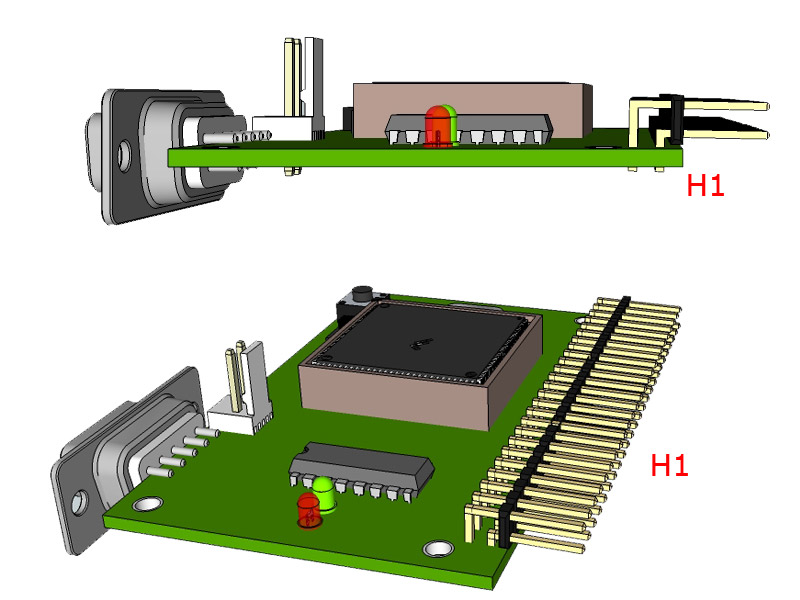

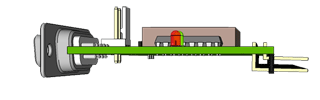

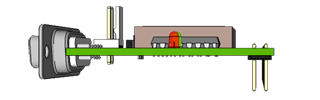

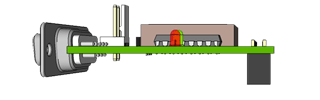

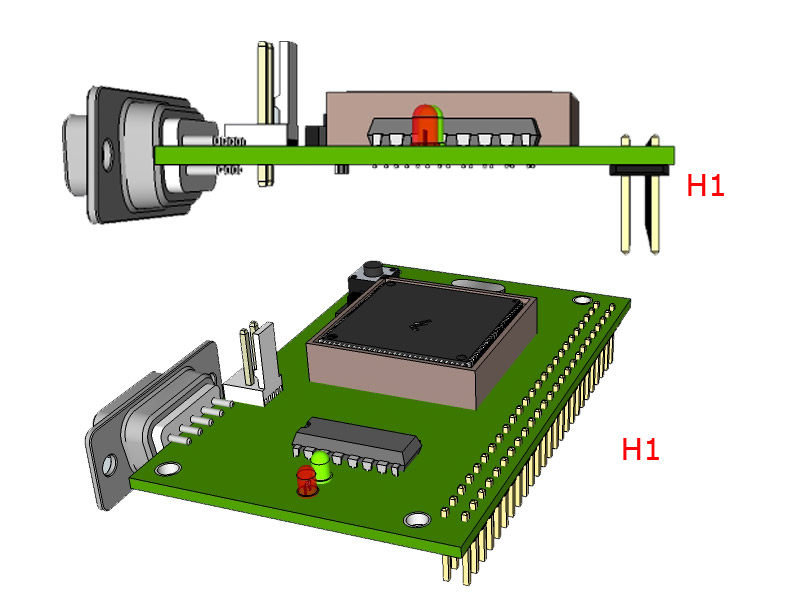

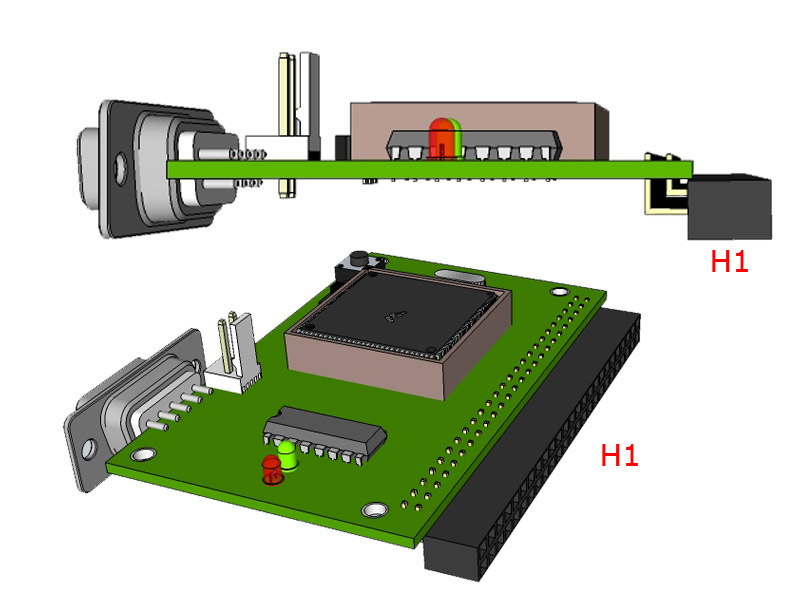

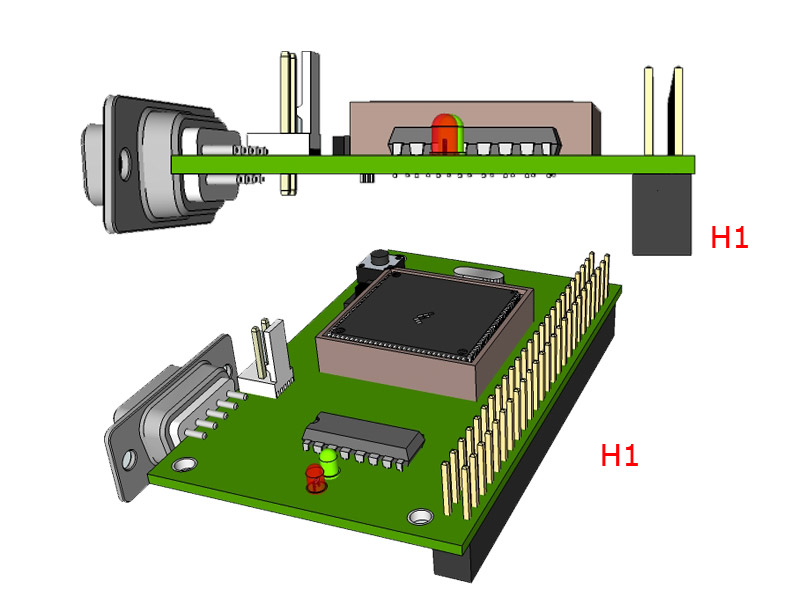

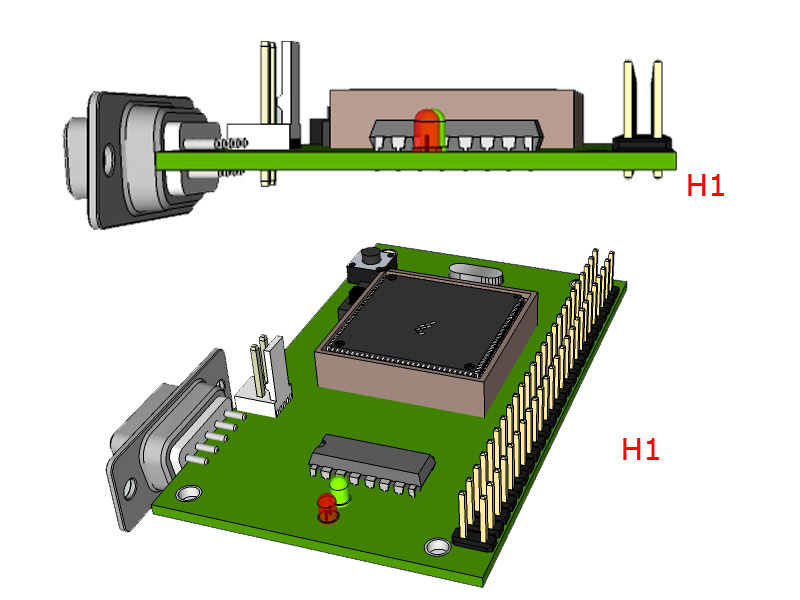

Standard Connector Options

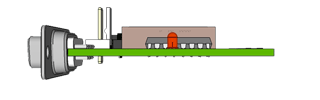

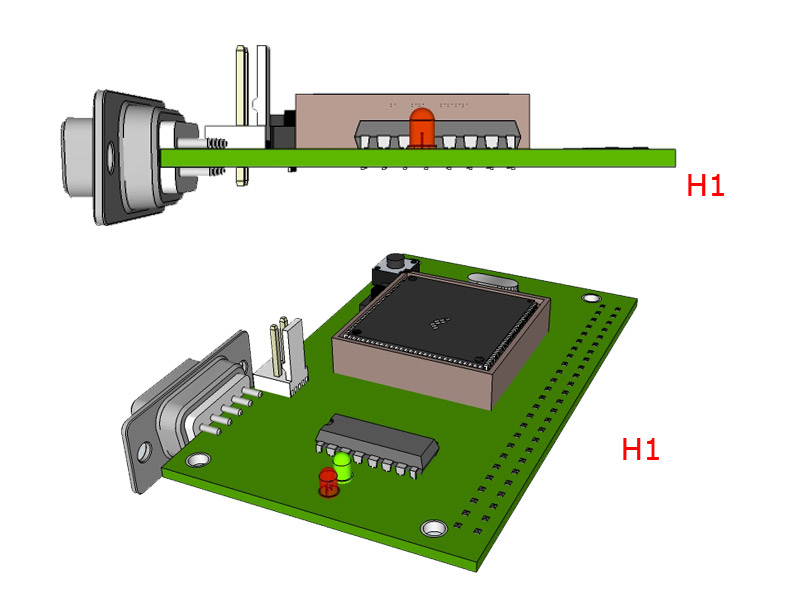

(NC = no connector)
Notes:
1) All connectors are standard 0.1" (2.54mm) spacing, with 0.025" (0.64mm) square pins/receptacles
2) Nominal 0.23" (5.85mm) pin mating length, and 0.33" (8.38mm) receptacle height

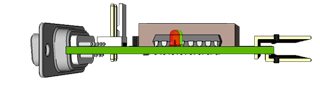

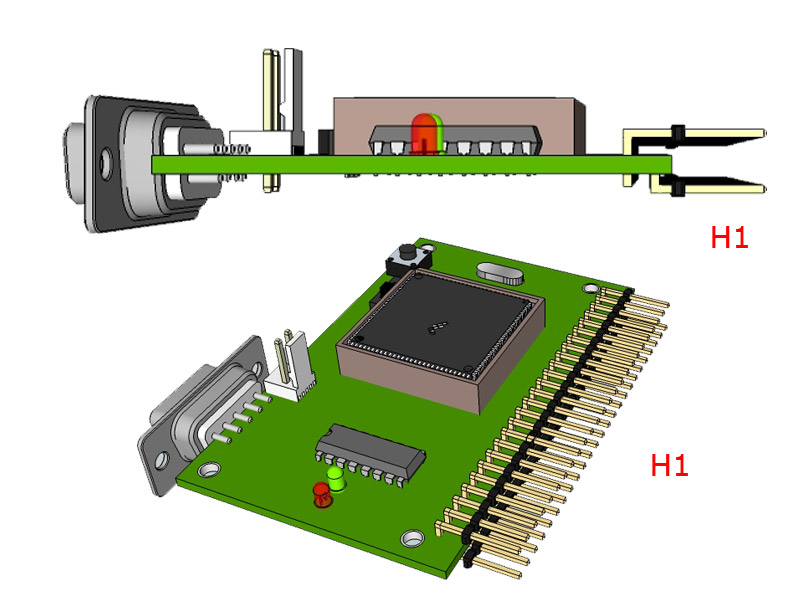

3) SB connector has 0.3" (7.62mm) spacing between rows.
