Product Info

Adapt812 Starter Package

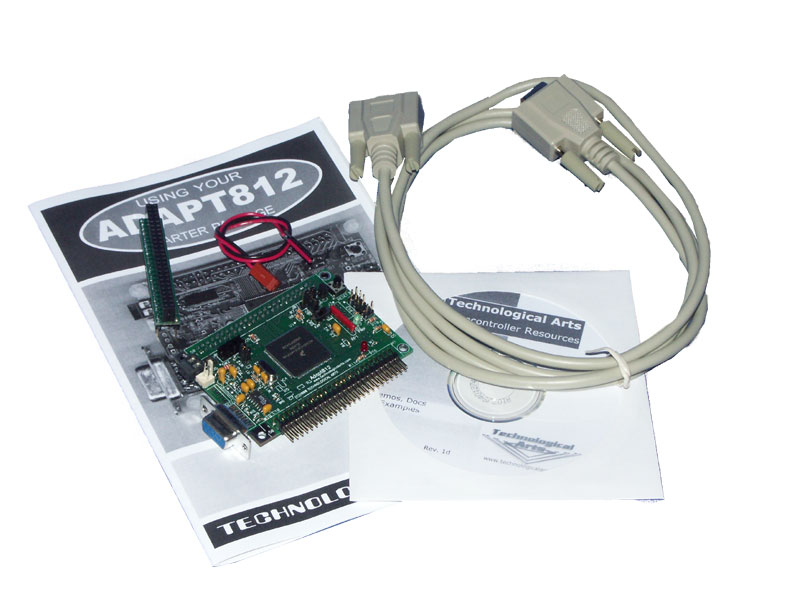

• fully assembled and tested Adapt812 module, with demo program installed
• includes full schematic, pinouts, and dimensional drawing
• module supplied with -RA (H1) and -M (H2) connector options
• disk includes documentation, download utility, SBASIC compiler, AS12 assembler, and demo program
• Adapt812 User's Guide
• ADHDR50-F adapter (lets you plug Adapt812 into your solderless breadboard for easy interfacing)
• 9-pin PC serial cable

Product Details

• compact (2.25" x 3.25") modular implementation of 68HC812A4 microcontroller
• 90 I/O lines, all programmable as input or output, many with input capture, output compare, and "key wake-up" interrupt capability
• 8-channel, 8-bit analog-to-digital converter
• 4K EEPROM and 1K RAM on-chip
• includes both RS232 (DB9) and RS485 (2-screw terminal block) interfaces, usable simultaneously
• versatile connector design for use with solderless breadboards, prototyping cards, or embedding into your design
• virtual plug-in replacement for Adapt11 boards (minor differences)
• primary 50-pin connector for dedicated I/O
• secondary 50-pin connector for additional I/O or expanded mode memory bus
• memory expandable offboard up to 4MB program and 1MB data memory (memory expansion cards for Narrow and Wide mode available)
• Background Debug Mode (BDM) fully supported for debugging your code
• 4-pin and universal 6-pin/10-pin BDM connectors support BDM pods from multiple vendors
• program in C, BASIC, or assembler
• 256-byte firmware bootloader provides convenient downloading via RS232 serial port(BDM pod not required)
• fully compatible with third-party assemblers, compilers, and BDM pods
• many accessories available
