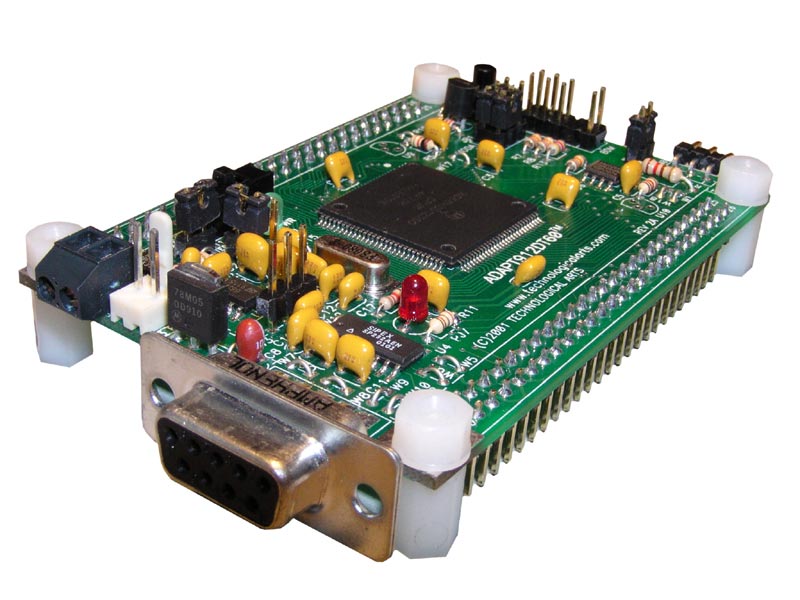

All of our standard connector options are available for this board. The product photo above shows "M" connector on both H1 and H2. Please make your choice of connectors before adding this item to your shopping cart. Otherwise, the board will be shipped with the default option (no connectors on H1 and H2).

Product Details

Adapt912DT60A is a compact, modular "Adapt12" form factor board, compatible with an entire range of application cards, prototyping cards, backplanes, and usable with solderless breadboards ("proto boards"). It includes a 5-volt regulator, and both RS485 and RS232 transceivers (usable simultaneously) on board.

Here are a couple of ways you can use Adapt912DT60A:

RAM-based code development. With a BDM pod (such as Adapt912 or microBDM12), you can load a program into the 2K on-chip RAM, run it, and insert breakpoints, via the BDM commands. With this method, you will not be able to use interrupts (since the RAM is not in the vector space of the MCU).

Flash-based code development. With a BDM pod (such as Adapt912 or microBDM12), you can erase and load your .s19 file into Flash. You just load the s-record, and then reset the board when you're done. Your code runs from Flash, including any interrupt routines you need, since Flash includes the vector space of the MCU. Because the Flash is made up of independent banks, you can run code out of one bank while programming or erasing the other bank. This feature lets you install a Flash bootloader on the chip if you like (so you won't need a BDM pod). The board is shipped with a Flash loader which resides in the top 8K protected block of Flash. When using this method, you use pseudo-vectors (ie. the user's vector table is mapped to the 0xdfxx space instead of 0xffxx space).

Resident DBug12 Debug/Monitor. Use a BDM pod to erase the entire Flash and then load the new 'D60 version of DBug12 from Motorola into Flash. Get the D-Bug12 version 3 files here. If you run DBug12 in Pod mode, you can use your Adapt912DT60A module as a BDM pod to work with any 68HC12 chips (eg. D60A, DT128A, etc). Add this circuit to transform Adapt912DT60A into a BDM Pod.

Flash Durability. Flash is erasable/programmable hundreds of times under normal operating temperatures and voltages, so you don't have to worry about wearing it out anytime soon. It is important to realize that Motorola's datasheet figure of 100 cycles is a guaranteed number of cycles under the most extreme temperature and voltage supply conditions allowed.
