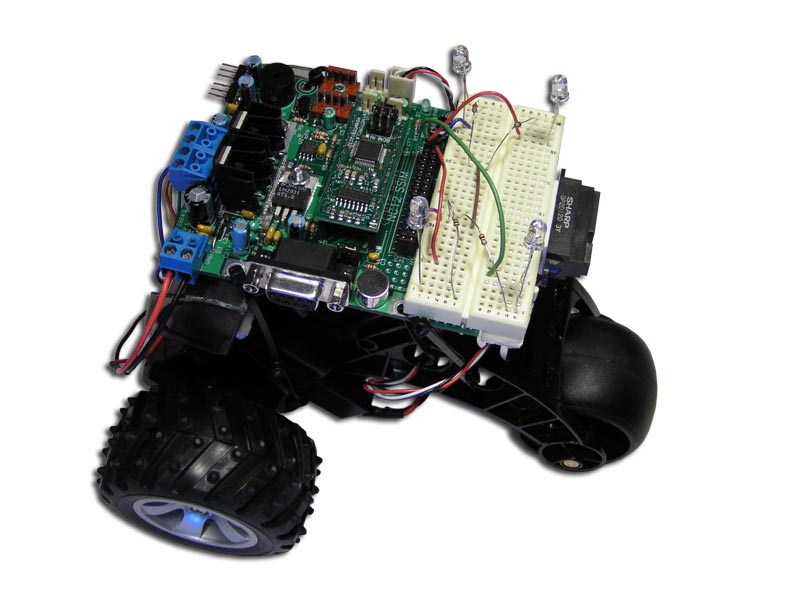

We have crammed all kinds of robot interface features into this board! Support for Ultrasonic and IR distance sensors, hobby servos, motor driving, audio input/output, more!

Product Details

• four analog sensor connectors-- works great with Sharp GP2D120 IR distance-measuring sensors (available in Components/Sensors category)
• six connectors for hobby servos
• one 9-pin serial port connector
• two connectors for Devantech SRF04 Analog Ultrasonic Ranger
• separate 6 Volt regulator for servos
• separate 5 Volt regulator for analog sensors
• battery voltage monitoring (up to 20volts)
• audio transducer
• microphone so your robot can detect sound
• dual high-current H-bridges (4A continuous, 6A peak)
• convenient pluggable terminal blocks for motor and power connections
• includes convenient solderless breadboard
• same mounting hole locations as NanoCore12 School Board (compatible with most hobby robot bases)
• requires 32-pin NanoCore module (NC12DXC32 or M68MOD912C32)-- not included

What you get:

• connector housings and crimp terminals for the sensor connectors are included
• this product ships with hardcopy data sheet and schematic diagram
