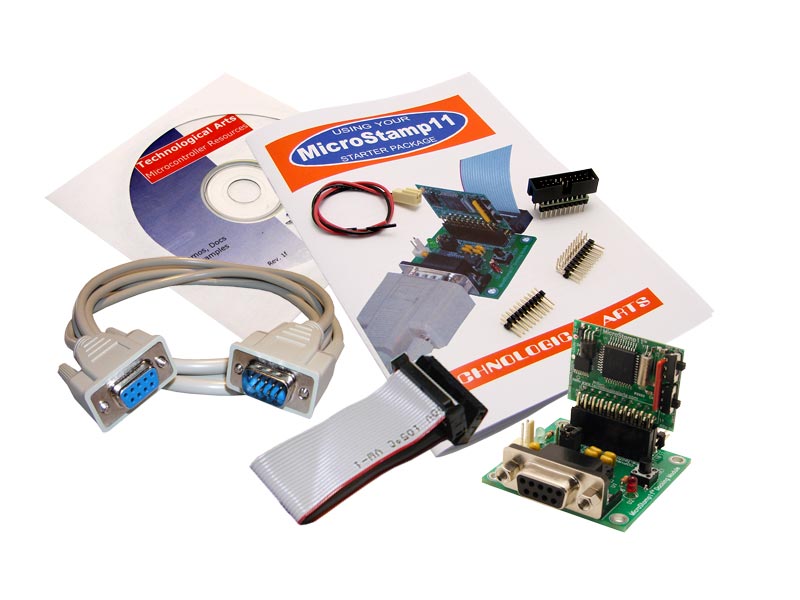

Starter Package Contents:
- 8K MicroStamp11 module with demo program in EEPROM
- Docking Module for PC serial interface (RS232 interface & reset button) to load your programs
- 9-pin serial cable
- default connector option is -FRA
- develop your application in place with included ribbon cable and solderless breadboard adapter
- mating connectors (HDR20-M and HDR20-RA) included for your application
- MicroStamp11 User's Guide
- hardcopy full schematics, pinout, and dimensional drawings
- free CD with utilities, documentation, software, and examples. Here are some of the items included:
- MicroLoad downloader for Windows
- XPad Visual Design Tool (limited demo version) - Windows
- BASIC11- a 68HC11 compiler/simulator/debugger/IDE - Windows
- ICC11 - ANSI C compiler with IDE (30-day trial) - Windows
- JBug11 - 68HC11 debugger (freeware) - Windows
- NoICE11 - 68HC11 debugger (shareware) - Windows
- SBASIC - 68HC11 BASIC compiler (freeware) - DOS
- 68HC11D3 Programming Reference Guide (pdf)
MicroStamp11 Features:
- thin board material (0.031")
- light weight: only 0.2 oz.
- tiny 1" x 1.4" stamp-sized board
- surface-mount chips for low-profile, high-density design
- features 68HC11D0 microcontroller
- 8 MHz crystal supports standard baudrates up to 9600
- 8K EEPROM
- EEPROM has hardware Write Protect (software write protect also possible)
- 192 bytes on-chip RAM +32K external SRAM (piggy-backed on EEPROM chip)
- all PORT A lines available (pulse accumulator, input captures, output compares)
- all six PORT D lines available (any mix of: general purpose I/O, SPI, or SCI)
- 5V low-dropout regulator
- low-voltage inhibit reset circuit
- all available port lines/interrupts/reset brought out to versatile 20-pin header
- convenient switches for RUN/LOAD and WRITE PROTECT (EEPROM)
- programmable in Assembler, BASIC, C, and Forth
- easy s-record loading via Docking Module, using MicroLoad (Windows program, included with Starter Package)
- compatible with BASIC11 Compiler/Simulator/Debugger/Terminal IDE for Windows
- modular design, with versatile connector options offers many configuration possibilities
- get a Starter Package first-- then buy as many additional modules as you need for all your applications
|
