Includes Adapt11C24DX32K module with 68HC11E0 and 68HC24 chips, serial cable, user manual, data sheet, schematic, & CD (includes MicroLoad downloading software, Motorola docs, freeware tools, code examples, and demo versions of commercial software).

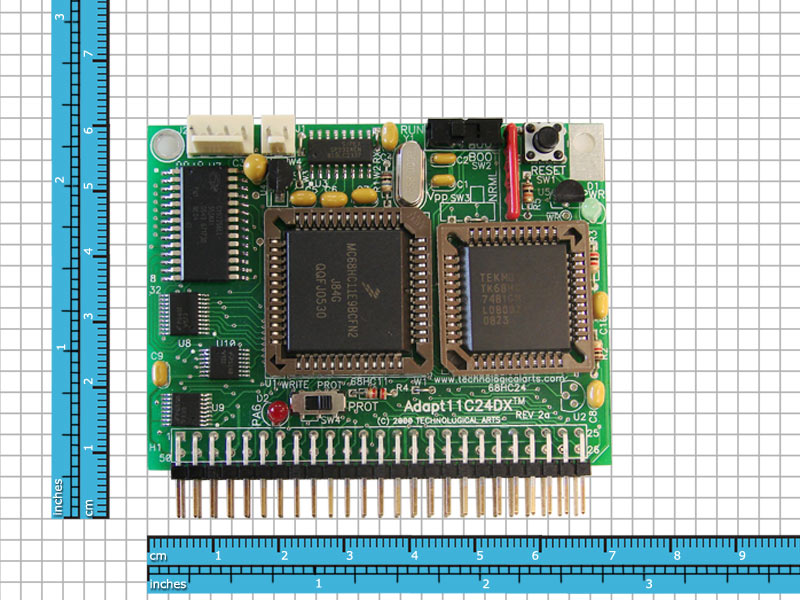

NOTE: The default connector option for the module is SB, as shown in the photo. However, all of our standard connector options are available for this product. If you prefer a different connector style, please request it in the Comments during Checkout.

Product Details

• Compact "DX" form factor (2.8" x 2.1")
• Works with any 68HC11 E series microcontroller
• 8 MHz crystal (2 MHz bus speed)
• 32K EEPROM
• 512 bytes internal RAM (on MCUs)
• Hardware Write Protect switch for EEPROM
• Design incorporates 68HC24 port replacement unit (PRU) for full 68HC11 port compatibility
• 26 general purpose I/O lines (including 3 input captures and 5 output compares)
• Pulse accumulator, hardware timer, real-time interrupt, watchdog, 2 hardware interrupts
• 8 channel 8-bit analog-to-digital converter
• Serial peripheral interface (SPI) port offers virtually unlimited expansion
• Serial Communications Interface (SCI) port, with programmable baud rate
• RS-232 serial port, utilizing on-chip SCI (4-pin connector)
• SCI compatible with MIDI and RS485/RS422
• On-board reset circuit and button, 5V regulator, and RS232 interface
• Low power requirements (45 mA nominal; much less in STOP mode)
• All port pins are brought out to standard 50-pin connector pattern
• Virtual plug-in interchangeability with all Adapt11 family boards
• 11 connector options for the ultimate in modular design capabilities
• Use programming language of your choice: C, BASIC, assembler, etc.
• Compatible with BUFFALO, JBug11 and PCBug11 debug/monitor programs
• Easy program-loading via MicroLoad, JBug11, PCBug11, ICC11, etc.
• Compatible with BASIC11 Compiler/Simulator/Debugger/Terminal IDE for Windows
• Low cost-- ideal for educational and embedded applications
• Many accessories available
