Product Info

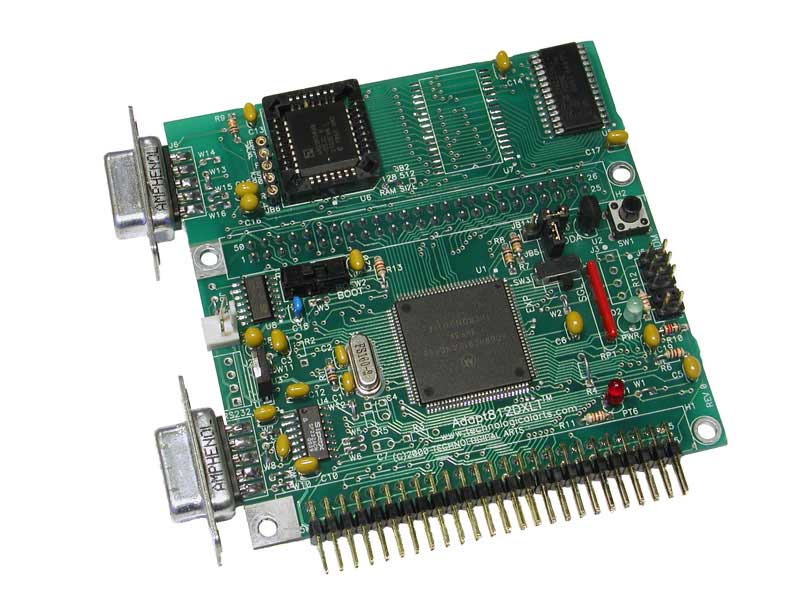

• compact "Adapt12DX" form factor (3.25" x 3.25")
• low-cost narrow expanded mode implementation of 68HC812A4 MCU (16 MHz crystal)
• 512K Flash provides plenty of code space for advanced applications
• 32K SRAM provides adequate data space for most applications
• two RS232 interfaces
• on-board 5V 500 mA regulator
• fully plug-in compatible with Adapt812 boards
• includes universal 6-/10-pin BDM interface connector for debugging via BDM pod
• easy Flash erasing/programming via embedded firmware utility (MXFlash), supports S1 and S2 record programming to external Program memory

What you get:

• this product ships with hardcopy data sheet and schematic diagram
• data sheets, manuals, and all other resources for this product can be found by clicking on the blue Resources tab above
