Product Info

• compact "Adapt12MAX" form factor (3.25" x 4.125")
• all-in-one Wide Expanded Mode implementation of 68HC812A4 MCU
• 512KB (256Kx16) Flash provides plenty of code space for advanced applications
• 1MB (512Kx16) SRAM provides plenty of data space
• clock/calendar chip
• battery backup for RAM and clock/calendar
• ideal for datalogging applications
• address/data/control lines available for user-implemented memory-mapped peripherals
• RS232 interface
• RS485 interface
• on-board 5V 500 mA regulator
• 16 MHz crystal (8MHz bus speed)
• low-voltage-inhibit reset circuit with pushbutton
• convenient Mode Select jumpers
• fully plug-in compatible with Adapt812 boards
• includes universal 6-/10-pin BDM interface connector for debugging via BDM pod
• easy s-record loading via embedded firmware utility (MAXFlash)

What you get:

• this product ships with hardcopy data sheet and schematic diagram
• data sheets, manuals, and all other resources for this product can be found by clicking on the blue Resources tab above

Before you order...

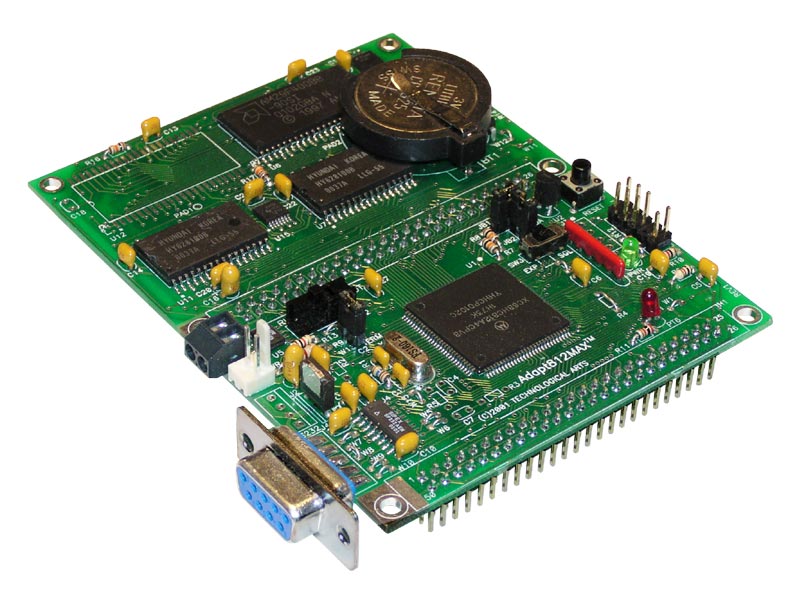

All of our standard connector options are available for this board. The product photo above shows "M" connector on both H1 and H2. Please make your choice of connectors before adding this item to your shopping cart. Otherwise, the board will be shipped with the default option (no connectors on H1 and H2).
