NanoCore12-School-Board with USB retrofitNanoCore12MAXZVCR School Board

NanoCore12-School-Board
View Full-Size Image


NanoCore12-School-Board

Order Code: NC12SBĀ
Price: USD $59.00


Product Info

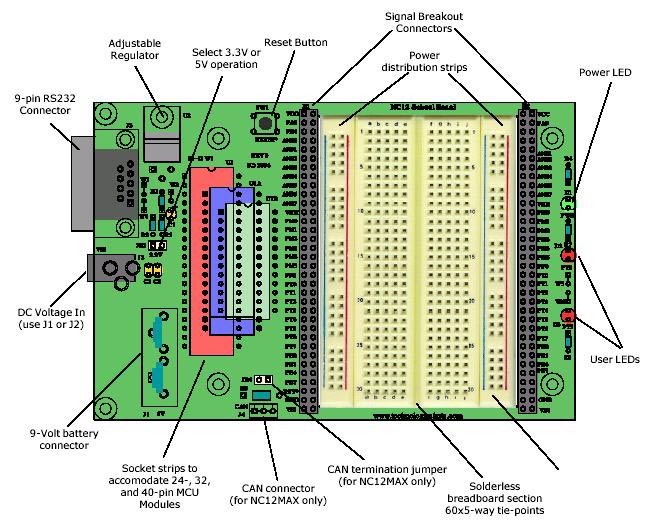

  • convenient platform for programming and experimenting with NanoCore12 MCU modules
  • generous solderless breadboard section for easy assembly and disassembly of interface circuits
  • includes power distribution strips, for easier circuit construction
  • 9-pin D-sub socket for serial interface to user personal computer
  • dual-voltage regulator configuration to permit user-selectable 3.3V and 5V operation
  • low-dropout, low-power regulator, with thermal shutdown and reverse-polarity protection
  • polarized power connector to prevent reverse polarity application by user
  • connection clips for optional 9V battery operation
  • oscilloscope grounding point
  • high-efficiency green LED power indicator
  • reset button
  • sturdy and durable SIP socket strips, for easy and safe removal and insertion of MCU module
  • multiple socket strips provided, to accomodate entire NanoCore12 family (24-, 32-, and 40-pin modules)
  • dual high-efficiency red user LEDs (PT0, PT1)

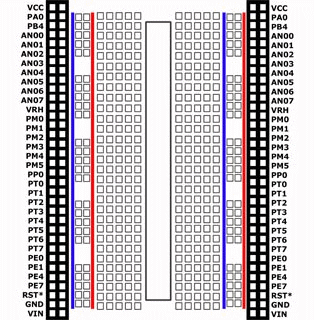

  • each MCU signal brought out to two connection points adjacent to breadboard via dual 68-pin receptacles
  • 3-pin CAN connector for use with 40-pin MCU Module (NC12MAX)
  • supplied with rubber feet (nylon standoffs optional)
  • same mounting holes as Parallax Board of EducationĀ®, for easy use with BOE Bot, Rogue Blue, etc.
  • requires 6 to 15VDC input (minimum 40 mA)
  • MCU module not included (order separately)
