Adapt9S12C32 MCU Module
View Full-Size Image

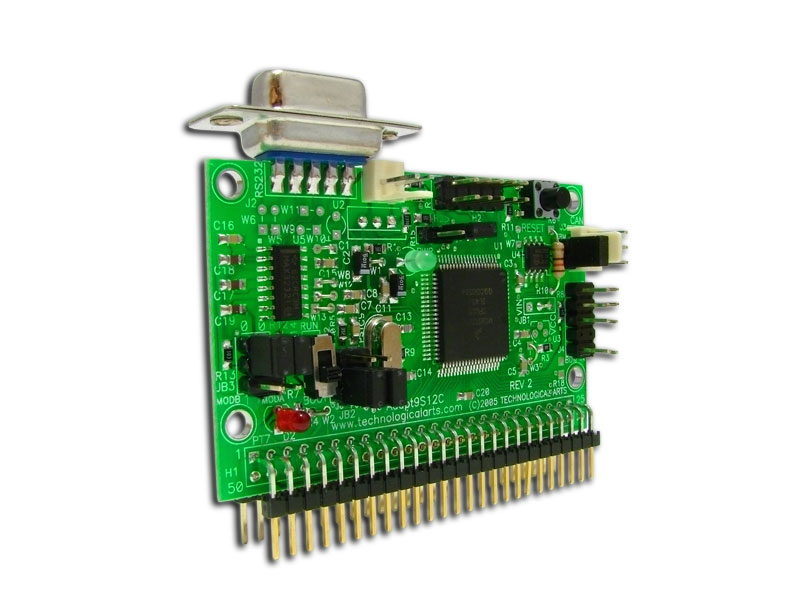

Adapt9S12C32 MCU Module

Order Code: AD9S12C32M
Price: USD $53.00

:


Overview

Adapt9S12C32 is a next-generation version of the immensely popular Adapt11 product originally introduced by Technological Arts almost 20 years ago. The flexible design, wide range of connector options, and breadboard pluggability supports all aspects of training, evaluation, development, prototyping-- and even volume production.

If you are migrating from the 68HC11, you'll appreciate the backward-compatibility. At the same time, you'll love the powerful HCS12 instruction superset, with its advanced DSP-like instructions, 16-bit arithmetic, memory-to-memory moves, and many powerful addressing modes.

Product Details

Adapt9S12C32 Highlights:

  • based on the Freescale 9S12C32 MCU (80-pin QFP version)
  • includes 8 Mhz crystal
  • up to 24 MHz bus speed (via PLL)
  • low-dropout 1.5 Amp regulator, selectable for 3.3V or 5V operation (NOTE: when operated at 3.3V, the on-board CAN transceiver is not functional)
  • includes RS232 transceiver circuit (9-pin D-sub connector)
  • includes CAN transceiver circuit (not functional when board is operated at 3.3V)
  • has small footprint (2K) on-chip Serial Monitor for easy code-loading and simple debug capability via uBug12JE or CodeWarrior
  • supports standalone operation
  • 32K Bytes Flash
  • 2K Bytes Ram
  • standard 50-pin Adapt11 form-factor board (1.7" x 2.8")
  • plug it into a solderless breadboard! (for this capability, choose "SB" connector option)
  • compatible with Adapt11 backplanes and prototyping cards
  • an extra eight I/O pins accessible via auxiliary 10-pin connector

Ease-of-Use Features

Software Development

  • supports programming in C, BASIC, Forth, assembler, etc.
  • fast in-circuit programming
  • small footprint on-chip bootloader/monitor and free uBug12JE multi-platform GUI for quick loading/debugging of user programs
  • Run/Load switch for selection of Standalone or Monitor operation
  • compatible with virtually all 9S12 development tools on the market

Flash-based code development using on-chip debug/monitor

With a 2K Flash-resident debug/monitor program, you'll be able to load your program into the remaining 30K Flash via the serial port using CodeWarrior or uBug12JE. The entire 30K Flash can be programmed in about 3 seconds! To use the monitor for debugging or code-loading, just set the switch to LOAD. To run your standalone program thereafter, leave the switch in the RUN position. Your code runs from Flash, and interrupts are supported (via Flash-based pseudo vectors, since the monitor resides in the vector space of the MCU). A program you load into Flash this way will run every time you apply power or reset the board in Run Mode.

Flash-based code development using a Background Debug Mode (BDM) pod

If you use a more advanced development tool (such as our USBDMLT or UBDM12LX5 pod), the entire 32K Flash can be used, because the Flash-resident bootloader is no longer needed (therefore pseudo-vectors aren't required either). More Features:
  • standard 6-pin BDM connector for full debugging capabilities (when used with an optional BDM pod)
  • up to 44 digital I/O lines on primary I/O connector
  • eight can be used as 10-bit analog inputs (Port AD)
  • auxilliary I/O connector brings out 8 more I/O pins (Port P)
  • up to six PWM channels (Port P)
  • up to eight Input Capture/Output Compare pins (Port T)
  • serial peripheral interface (SPI)
  • serial communications interface (SCI)
  • controller area network (CAN 2.0) with on-board transceiver circuit
  • up to ten key wake-up interrupt pins
  • internal programmable pullup and pulldown resistors on most pins
  • user access to MCU Reset signal

What's in the package

Contents:

  • assembled module, with your choice of connector style for the 50-pin I/O connector (H1)
  • red and black pluggable power wire (#PCJ1-8)
  • printed pinout/schematic
  • data sheets, manuals, and all other resources for this product can be found by clicking on the Resources tab above

I/O Connector Options

Important!

The 50-pin I/O connector style shown in the product photo is designated "SB", which enables the board to be plugged directly into a solderless breadboard. Other popular connector styles are RA , RA1, and M. Be sure to make your connector option selection below before adding to your cart.
