Adapt9S12DP512 is a compact, modular implementation of Freescale's flagship 9S12D family of microcontroller chips. The HCS12 family is backward-compatible with 68HC12 (and 68HC11), and utilizes the latest process technology. By shrinking feature size, more functionality can be put on a chip, reducing power consumption and cost, while increasing operating speed. Adapt9S12DP512 is an ideal low-cost platform that brings these advantages within easy reach of engineers, students, and hobbyists. The flexible design of the entire "Adapt" series microcontroller products accommodates all facets of training, evaluation, development, prototyping, and even volume production.

Product Details

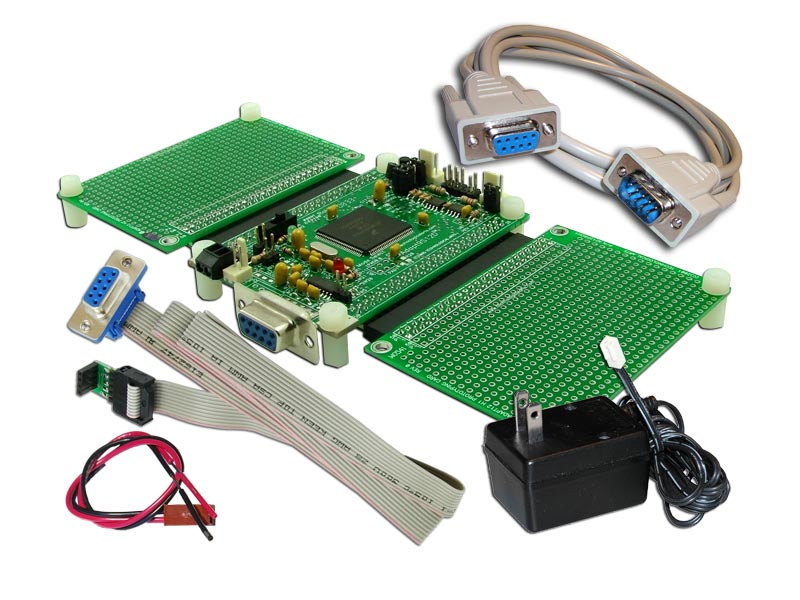

Evaluation Package Contents:

• fully assembled and tested Adapt9S12DP512SM2 module
  • Full configuration, with Serial Monitor on-chip
  • supplied with "RA1" connector option, for easy probing of all signals
  • one dedicated RS232 port (9-pin D-Sub)
  • one jumper selectable RS232 (4-pin Molex connector) or RS485 (terminal block)
  • dual CAN transceivers (3-pin Molex connector)
• two prototyping cards (one each for H1 and H2)
• convenient nylon standoffs for mounting
• standard 9-pin D-sub serial cable
• 9-pin to 4-pin Molex serial cable for second serial port
• mating connector housings for CAN ports
• 120VAC to 9VDC adapter (300 mA). Note: this item will be omitted when shipped to destinations outside North America
• hardcopy schematic and pinout sheet
• find additional documentation, tools, utilities, and example code by clicking on the blue Resources tab, above

Description:

Adapt9S12DP512 is a compact, modular "AdaptS12" form factor board, compatible with an entire range of application cards, prototyping cards, and backplanes, and usable with solderless breadboards ("proto boards"). It includes all necessary support circuitry for the MCU, as well as a 5-Volt regulator, and transceivers for RS232, CAN and RS485 (on option M2 only).

Resources

MCU Documentation:

• Device Guide
• Freescale webpage

Module Documentation:

• Adapt9S12DP512 Component Layout
• Adapt9S12DP512 Pinout Table
• Adapt9S12DP512 Data Sheet
• Evaluation Package User Manual (Note: current version does not cover Serial Monitor)
• Support Library

Tools:

• uBug12 GUI for working with the on-chip Serial Monitor under Windows and .NET framework (if you need it)
• Linux command line tool hcs12mem for working with the Serial Monitor
• SynCode: Free Integrated Editor and GNU C Compiler package for Windows
• Special Edition C compiler for 9S12X from Freescale (32K C code limit; unlimited assembler)
• CodeWarrior Learning Center
• 45-day Demo C compiler from ImageCraft
• AsmIDE is a free Windows IDE for GNU C, created by Eric Engler
• Using the GNU Development Tools for 68HC11 and 68HC12
• 68HC11/HCS12 Application Notes for ICC and GNU C Compilers
• FreeRTOS for 9S12D
• University of Texas library of C code for 68HC12 and HCS12 microcontrollers
