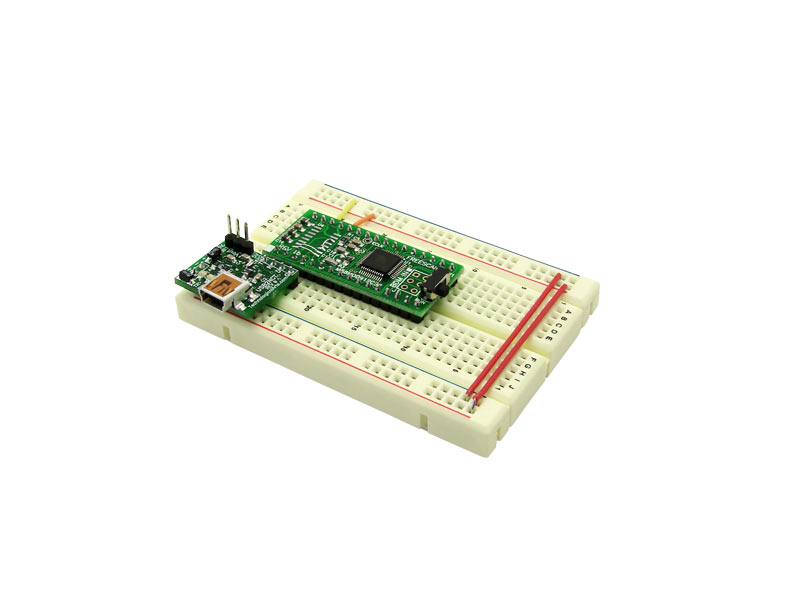

This cost-effective package includes only the most essential items to get you up and running with NanoCore12 fast when using USB communications:

• a low-cost NanoCore12DXC32ST TTL-level module
• a breadboard-compatible USB module
  • on-board 3.3V regulator
  • jumper-selectable 3V or 5V power to your breadboard
  • poly-fuse protected
• a USB cable
• the Using Your QuickStart Package document

You supply the breadboard and components for your project. Download software, manual, data sheets, and examples from the website.

When used with the new free nqBASIC programming environment, this makes an extremely cost-effective, easy-to-use package!

Product Details

Module Features:

• based on the 9S12C32 MCU
• includes 8 Mhz crystal
• 24 MHz bus speed (via PLL)
• local 5 Volt low-dropout 100 mA regulator
• TTL-level TX and RX pins
• on-chip Serial Monitor
• supports standalone operation
• 32K Bytes Flash
• 2K Bytes Ram
• 32-pin DIP form-factor
• pinout is super-set of competing 24-pin modules on the market
• low-profile (BDM connector not installed)
• 0.025" (0.64mm) gold-plated square pins
