adapter, 40-pin DIP to solderless breadboard
View Full-Size Image


adapter, 40-pin DIP to solderless breadboard

Order Code: SBADIP40-SB
Price: USD $6.60


Click on the image to view gallery.

Product Info

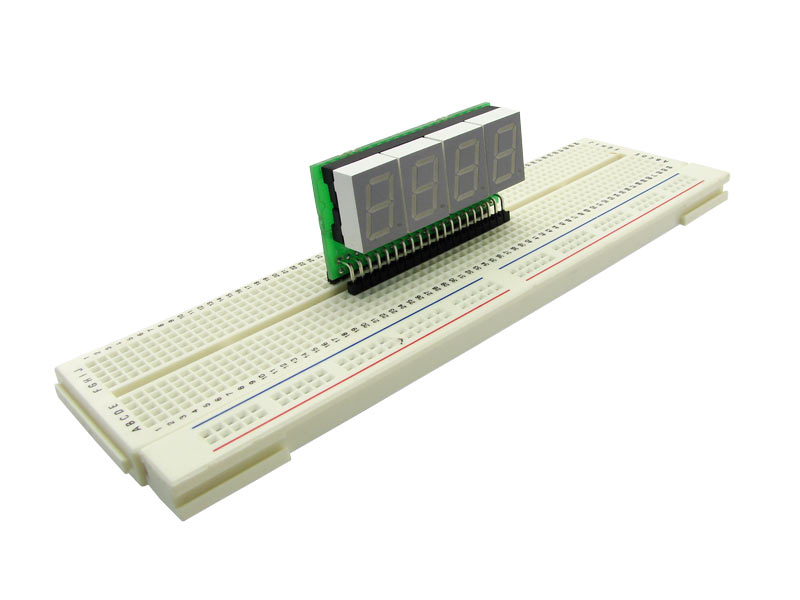

  • designed for using up to four 7-segment displays in your solderless breadboard
  • positions displays perpendicular to breadboard
  • compatible with many 7-segment displays, including our DISP7CA560 displays
  • compact vertical design
  • dual-leaf 40-pin DIP socket for your displays
  • gold-plated 0.025" square-pin right-angle header terminations
  • rows spaced 0.3" apart to plug into standard solderless breadboard
  • takes minimum real estate on breadboard
  • gives maximum access to tie-points
  • same pin-numbering scheme as DIP package (pin numbers ascending counterclockwise from lower left corner)
