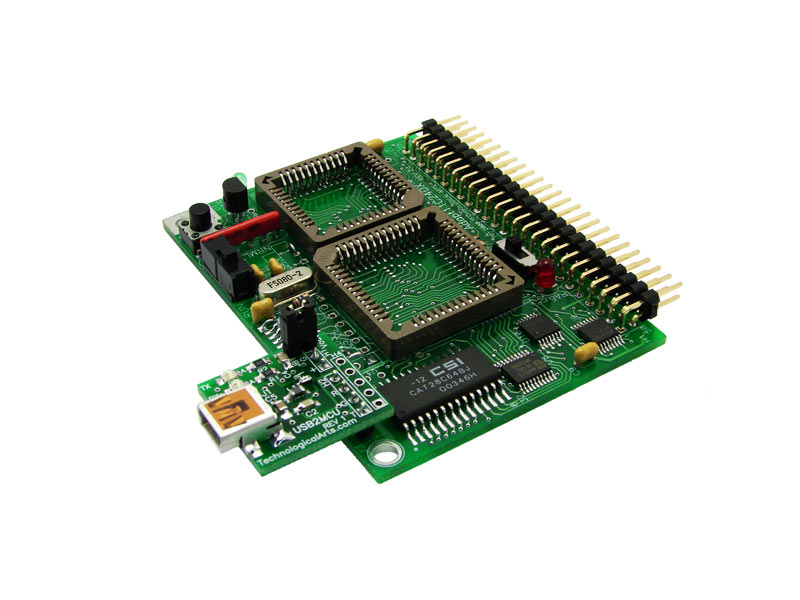

Features:
- Compact "DX" form factor (2.8" x 2.1")
- Works with any 68HC11 E series microcontroller
- 8 MHz crystal (2 MHz bus speed)
- 8K EEPROM
- 512 bytes internal RAM (on MCUs)
- Hardware Write Protect switch for EEPROM
- Design incorporates 68HC24 port replacement unit (PRU) for full 68HC11 port compatibility
- 26 general purpose I/O lines (including 3 input captures and 5 output compares)
- Pulse accumulator, hardware timer, real-time interrupt, watchdog, 2 hardware interrupts
- 8 channel 8-bit analog-to-digital converter
- Serial peripheral interface (SPI) port offers virtually unlimited expansion
- Serial Communications Interface (SCI) port, with programmable baud rate
- TTL-level SCI pins brought out to I/O connector are compatible with MIDI and RS485/RS422 drivers
- On-board reset circuit and button
- USB interface retrofit (miniB) also provides regulated 5V power
- can be powered externally via I/O connector
- Low power requirements (45 mA nominal; much less in STOP mode)
- All port pins are brought out to standard 50-pin connector pattern
- Virtual plug-in interchangeability with all Adapt11 family boards
- 11 connector options for the ultimate in modular design capabilities. Click here to view some example configurations.
- Use programming language of your choice: C, BASIC, assembler, etc.
- Compatible with BUFFALO, JBug11 and PCBug11 debug/monitor programs
- Easy program-loading via MicroLoad, JBug11, PCBug11, ICC11, etc.
- Compatible with BASIC11 Compiler/Simulator/Debugger/Terminal IDE for Windows
- Low cost-- ideal for educational and embedded applications
- Many accessories available
What you get:
- this product ships with hardcopy data sheet and schematic diagram
- find data sheets, manuals, and all other resources for this product by clicking on the blue Resources tab, above
- the 68HC11E microcontroller chip and the 68HC24 port replacement chip are not included; buy them separately from the Components Category at the left
|
