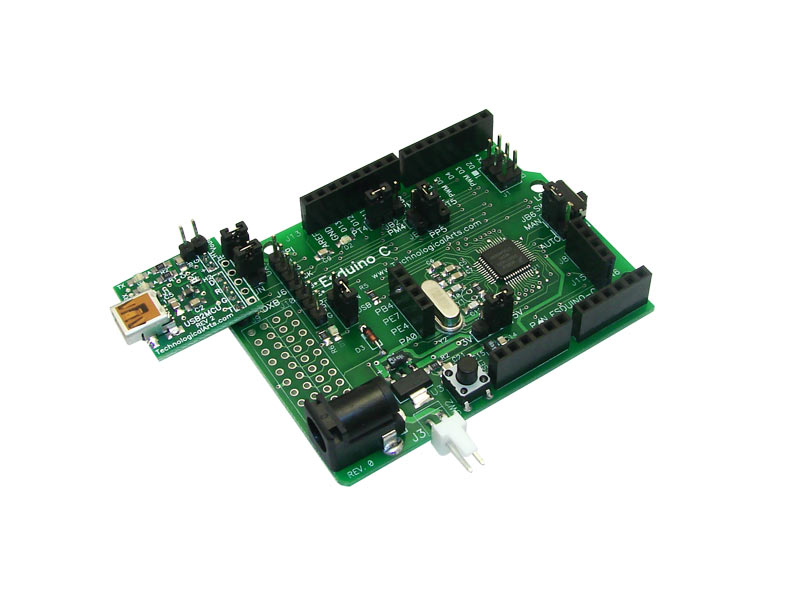

Esduino is an Arduino-style board based on a 9S12C microcontroller! What this means is that you can now easily utilize the powerful Freescale 16-bit 9S12C microcontroller in your projects by using any of a great number of Arduino shields already available from various sites worldwide. And if you can't find one that exactly matches your needs, you can always design your own, using the open-source hardware design files you'll find on the internet.

Since it is based on S12, your code can be developed using any S12 tools (e.g. CodeWarrior, AsmIDE, GCC, ICC12, etc.). For those who prefer the Arduino development environment, a community project is currently underway to port it to 9S12C. If you're interested with this project in getting involved, please contact us.

Esduino12C32-UR features:

• 9S12C32 16-bit microcontroller
  • up to 24MHz bus speed (with PLL enabled)
  • 32K flash and 2K RAM
• on-chip Serial Monitor (bootloader)
• jumper-selectable mapping of Arduino-defined PWM pins. This lets you choose the source for these pins in your application.
• two additional analog-to-digital channels available (PAD06 and PAD07), which can also function as digital inputs or outputs
• two additional digital I/O pins brought out (PM0 & PM1), which can be used for CAN interface, if desired
• SPI pins also brought out to a single connector, for use with SPI peripherals, such as ShiftBrite and soon-to-be-announced products
• on-board USB interface retrofit provides 5V to power all circuitry (poly-fuse protected)
• external power jacks (barrel and 2-pin Molex) to accommodate alternative power source when USB not connected (e.g. batteries)
• connector for optional ADXB adapter (see Accessories) supports low-cost addition of XBee radio module (purchase separately).  No XBee shield required!
• on-board 5V and 3V regulators supply all circuitry, and also power any application shields that you plug in
• fully compatible with free nqBASIC programming language
• compatible with all other 9S12 programming environments (CodeWarrior, AsmIDE, Eclipse, etc.)

What you get:

• assembled and tested Rev.2 Esduino board, with USB retrofit
• printed feature sheet and schematic diagram
• Find relevant documentation, tools, and examples by clicking on the Resources tab, above

*Note: ADXB feature non-functional on Rev. 0 and 1 boards. See schematic for details.

Product Details

  Not familiar with Arduino?
Arduino is an open-source physical computing platform based on an Atmel 8-bit microcontroller. Originating in Italy, it has become very popular worldwide over the past couple of years. The creators of Arduino refer to any application board designed to plug into it as a "shield". Many shield designs were created using the free version of CadSoft's Eagle schematic capture and circuit board layout program. If you want to design your own board, you can download Eagle and any of the open-source design files you'll find on the internet. Then you can modify them to suit your needs, and use a PCB prototyping service to have the boards fabricated for you.

If you don't want to layout a PCB, you can always opt to build your application by hand using point-to-point wiring with one of our many Prototyping Shield designs.

Resources

Documentation:

• Data sheet with schematic diagram

• Schematic diagram of USB2MCU retrofit module
• Drivers for the FT232R USB chip used on USB2MCU from www.ftdichip.com
• App Note: Configuring Virtual Comports in Windows

Freescale 9S12C Data:

• MC9S12C Product Brief
• MC9S12C Data Sheet
• Freescale MC9S12C Webpage

Compilers & Assemblers:

• nqBASIC: a free Windows-hosted object-based programming language for NanoCore12
• Special Edition of CodeWarrior for HCS12(X). It has a 32K C code limit, and unlimited Assembler, so it is essentially free for 9S12C32 users.
• 45-day Demo C compiler from ImageCraft
• SynCode: Free Integrated Editor and GNU C Compiler package for Windows
• Eric Engler's AsmIDE

Tools & Utilities:

• uBug12 Windows GUI for working with the on-chip Serial Monitor and .NET framework (if you need it)
• Linux command line tool hcs12mem for working with the Serial Monitor
• FreeRTOS for 9S12C32
