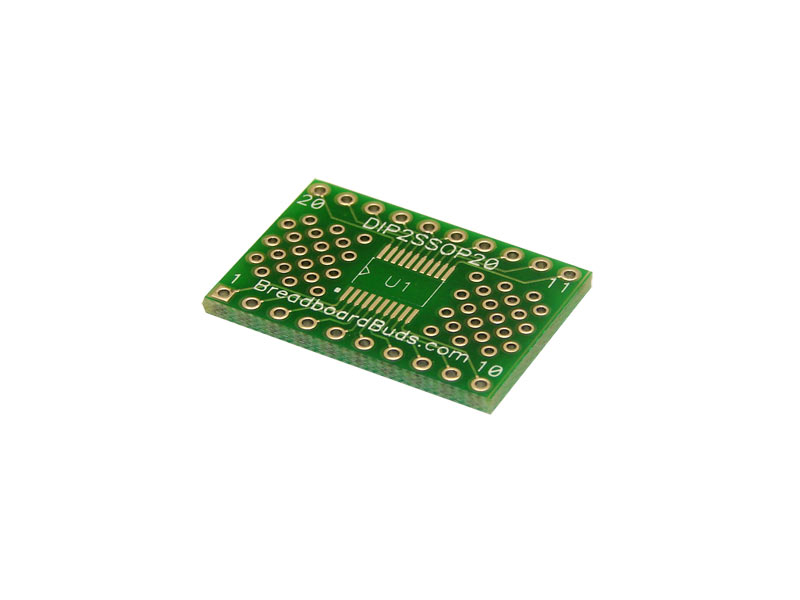

  This is a blank breakout board with a surface-mount pattern to accept a 20-pin T/SSOP package. Two rows of pads are provided, on 0.1" centers, to accommodate standard 0.025" square pins, round pins, or wires. Distance between the two rows of through-hole pads is 0.6", designed to plug into a standard wide DIP socket or a solderless breadboard. The boards are end-to-end stackable so that multiple units may be plugged into a breadboard or socket, side by side. Manufactured by Technological Arts.

Features:

• suitable for use with any chip supplied in a 20-pin TSSOP package (150mil nominal body width)
• end-to-end stackable
• direct one-to-one pin-numbering
• solder-masked and plated for easier chip mounting
